Potato Uses and Potato Processing Machine Review in 2020

Potato-Uses-and-Potato-Processing-Machine-Review-in-2020

Potatoes are used for a variety of purposes, it is not only an important nutritional component which is a vegetable for cooking at home. Almost 400 million tonnes are produced annually. In fact, it is likely that less than 50 percent of potatoes grown worldwide are consumed fresh. The remaining crop is processed into a variety of foodstuffs as products including french fries, dehydrated potato flakes, food ingredients, animal feed, potato starch and as a starch source for vodka or alcohol production.

1. FOOD USES: FRESH, FROZEN, DEHYDRATED

Fresh potatoes are baked, boiled, or fried and used in a staggering range of recipes: mashed potatoes, potato pancakes, potato dumplings, twice-baked potatoes, potato soup, potato salad and potatoes au gratin, to name a few.

But global consumption of potato as food is shifting from fresh potatoes to added-value, processed food products. One of the main items in that category is frozen potatoes, which includes most of the french fries (“chips” in the UK) served in restaurants and fast-food chains worldwide. The world’s appetite for factory-made french fries has been put at more than 7 million tons a year. Another processed product, the potato crisp (“chips” in the US) is the long-standing king of snack foods in many developed countries.

1.1 Fresh Potato Process

In order to keep potato well, After potato harvest, we recommend leaving the potato for an hour or so to dry. During that time most of the soil stuck on them should also drop off. If there are too many earth on the potato surface, we can use very soft brush to take off of dirt. Don’t wash the potatoes; it’s hard to get them really dry afterward, which will make potato easy corrupt.

Put the potatoes in the dark after they’ve dried in the open for a short time. Don’t leave them in burlap bags or other containers where light can penetrate and start them greening.

If possible, storage potatoes should have a short drying or “curing” period of one to two weeks after the harvest. Curing allows any slight cuts or bruises on the potatoes to heal rapidly. Keep the tubers in a dark place with temperatures around 55° to 60° F with high humidity of up to 85 or 95 percent.

After a curing period, move the potatoes to a much cooler, dark place for winter storage. Experts recommend 35° to 40° F with moderate humidity and ventilation. If these standards are met in your basement or root cellar, you can expect mature potatoes to store for up to eight months. Higher temperatures will mean quicker sprouting and shriveling.

Because potatoes have to breathe in storage, a root cellar needs good air circulation The potatoes are still carrying on normal life processes, using oxygen to heal bruises and cracks and giving off carbon dioxide, heat and moisture. Good air circulation in the storage room helps this continuing process. A good way to store potatoes is in bins with slatted sides and bottoms; however, don’t pile them higher than 6- to 8-inches tall.

Occasionally, potatoes turn “sweet” during storage. This happens because potatoes convert a certain amount of starch to sugar, which is used up in the “breathing” process. When the tubers are stored in cool root cellars, the breathing slows down and they don’t use up all the sugar they produced. Occasionally, this extra sugar gives the potatoes a sweet taste if they’ve been taken directly from cool storage and cooked. However, this is rarely a problem. If your potatoes sweeten, just bring a week’s supply out of storage at one time and keep them in a warmer spot. The extra sugar will revert to starch — a process experts call “reconditioning”.

A Note on Green Potatoes

When potatoes are exposed to light their skins start to turn green — a sign that a toxic substance called solanine is developing. This occurs if potatoes aren’t fully covered by soil while they’re growing, if you leave them in the sun for too long after the harvest, or if they aren’t stored in complete darkness. Potatoes you buy from the supermarket also turn green if they aren’t stored in a dark place.

Because solanine is slightly toxic, it’s possible to get sick if you have a large helping of greened potatoes. Peeling or cutting away green sections before cooking usually eliminates the problem, as most of the solanine is located in the spud’s skin.

1.1.1 How to Clean Potato After Harvesting

Potato-Dry-Cleaning-MachineAfter potato harvest, it will have much earth mixed with the potato. If we washing potato with water soaking, the potato will easily damage. Generally, we use the brush to remove the potato surface earth.

Potato Dry Cleaning Machine is used to continuous brush removing the earth, impurity on the surface of the potato. After dry cleaning, we can also add one conveyor for selecting. The worker can remove the bad potato on the conveyor. After dry cleaning, these onions will be used for packing into the bag for sale.

1.1.2 How to Sort Potato to Different Size

Automatic-Potato-Size-Sorting-Machine-for-SaleBefore Packing or Storage, we will need to sort potato into different sizes for different uses. Some potatoes will pack and sell in supermarket, some potato will be used for making flour, some potatoes will be used to make potato snacks.

Automatic Potato Size Sorting Machine is a special design for sorting and grading round shape fruit according to their size.  It can feed potatoes to the machine automatically. That will greatly save labor cost and time. Automatic Potato Size Sorting Machine has the function of lifting picking fruit, roll bar conveyor, roller sorting and other functions. This device has combined lifting, sorting two parts. It uses a rollbar conveyor to transport fruit.

1.1.3 How to Pack Fresh Potato

Paper, plastic or mesh bags are all options for the potato buyer, distributor or warehouse to select their choice.

Paper used to be prevalent in the days when everyone bought 10-20-50 pounds of potatoes at a time but mostly went away because of two reasons. Firstly, if the bag broke, they had to be placed in another container. This was especially a problem if the bag was moist. Secondly, customers could not see the potatoes inside.

Mesh and a combination of mesh and plastic were still the preferred methods for the seventies to nineties and some grocery chains, especially in the Northeast still request them. These were typically orange or purple and partially protected the potatoes from turning green due to light while on display.

Plastic, most often with holes, has become the dominant method now. Some are clear and some have a brownish tan tint. It allows for better graphics, printing the nutrition chart on each bag.

1. Transport Mesh Bag Package Potato Weighing Machine

Automatic-Potato-Weighting-Bag-Packing-Machine

Automatic Mesh Bag Potato Weighing Packing Machine is designed for dosing of agricultural products (potatoes, onion, garlic, apply, etc) into knitted sleeves, box pallets, bags or cases. The potato material shall be cleaned and sorted out for the operation to be smooth and trouble-free. The minimum size of fruits is 20mm.the maximum size of fruits is 120mm.the average effective volume of the hopper in which a dose is weighed is 70 dm3 (this corresponds to 50 kg of potatoes of the size of ca.70 to 90 mm). The weight of a dose can be adjusted by 0.01kg in the range of 5 to 50kg. The device can work as the last stage of an after-harvest assorting line, or it can work alone. One person is sufficient for its operation.

Feature of Automatic Potato Weighing Packing Machine

  1. Two conveyor belt is installed on the machine frame. Each conveyor belt is driven separately, and the data can be adjusted individually. The 0.3m belt is controlled by a double operation speed electric reducer so that the belt can convey the products into the hopper. The 0.1m belt is by the low-speed electric reducer. After the 0.3M belt stopped, it will get accurate measurements until the target weight.
  2. The hopper is installed in the bottom frame by a pressure sensor. There is a discharging door in the hopper, which is controlled by two cylinders for discharging and closure.

Specification of Automatic Potato Weighing Bag Packing Machine

Specifications RM50
Machine size 2920*790*2170mm
Net weight 330KG
Working condition ambient temperatures, not be affected by air conditions
Running temperature +5℃-40℃
Rated voltage   3P 380VAC ±10%
Control voltage DC24V
Power 2.2kw
Air pressure 0.8MPa
Weighing range 5-50KG
Weighing adjusting 0.01kg
Dosing accuracy More or less than the weight of one product
Weight display Numbers, four digits
Weight display digit 0.01kg
Quantity display Numbers, 0-9999
Control module One bag modus or pallet modus
Noise grade   77dB
personnel   one
Speed 5KG (based on the actual weighing products) reaches 280pcs/h50KG (based on the actual weighing products) reaches 110pcs/h

2. Automatic Small Mesh Bag Potato Packing Machine

Full-Automatic-Mesh-Bag-Packing-PlantPotato-Mesh-Bag-Clipping-Packing-Machine

Full Automatic Potato Mesh Bag Packing Machine for Supermarket is an automatic mesh bag packing plant, which is used to weight potato and pack in a mesh bag or net bag. It is suitable for small 1-5kg mesh bag packing that is widely used for supermarket selling.  It includes the following equipment: horizontal conveyor, high angle belt conveyor, multi-head weigher, platform, mesh bag clipping machine, take away conveyor, rotary collection table and mesh bag loading machine.



1.2 Potato Frozen French Fries Processing Plant

1.2.1 What is Frozen French Fries

Frozen French Fries is one semi-complete french fries that will be used to make final french fries. It will need to fry again and add flavor before eating. These Frozen French Fries will be manufactured in the factory and keep in cold condition which makes it is convenient to use and easy to transport. Because Frozen French Fries is easy to transport and storage, It is widely used in restaurants and hotels, such as Macdonald and KFC.

According to different capacity and budget requirements. Romiter provides frozen french fries plant as follow. For 1000kg Fresh Potato, we can get 800kg frozen french fries.  In order to get potato frozen french fries, we need washing and peeling the potato, cutting the potato in stick, blanching potato stick, frying potato stick, remove the oil after potato stick frying, frozen the potato stick and pack it for selling.

1.2.2 Manual Frozen French Fries Production Line

Semi-Automatic-French-Fries-Production-LineManual Frozen French Fries Production Line is used to make frozen french fries in manual method. For this frozen french fries line, each machine requires one worker to operate.  take material from one machine to another machine for processing. Semi-Automatic Frozen French Fries Production line is suitable for small french fries business industry. Manual Frozen French Fries Machine can be used for 20kg/h, 50kg/h, 75kg/h and 100kg/h capacity line (because manual type french fries frying machine and potato blanching machine has 1 container frying, 2 container frying, 3 container frying and 4 container frying design).

Specification of Small Frozen French Fries Machine

Item Name Description Qty.
1 Brush Type Potato Washing Peeling Machine Power:1.1KW 1 unit
Size:1200*850*800mm
Weight: 200kg
Capacity:400kg/h
2 Potato Sticks Cutting Machine Power:1.1KW 1 unit
Size:950*800*950mm
Weight:110kg
4 Two Container Batch Type Potato Blanching Machine Power: 24KW 1 unit
Voltage:380v/50Hz
Size:1200*700*950mm
5 Batch Type Centrifugal Water Potato Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
6 Two Container Batch Type Potato French Fries Frying Machine Power: 24kw 1 unit
Voltage:380v-3
Size: 1200*700*950mm
Weight: 120kg
7 Batch Type Centrifugal De-Oiling Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
8 Instant Freezer Power: 10KW 1 unit
Voltage:380v/50Hz
Size: 2000*2000*2000mm

1.2.3 Semi-Automatic Frozen Fries Production Line

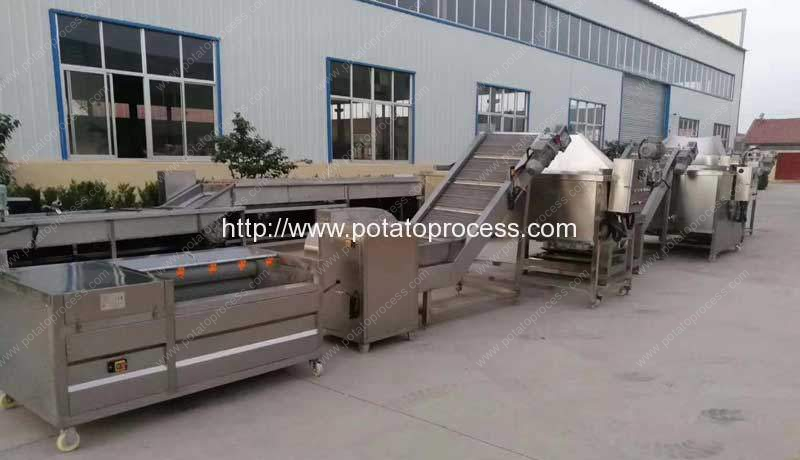

Semi-Automatic-French-Fries-Production-Line-with-Auto-Discharging-Frying-and-Blanching-MachineSemi-Automatic Frozen French Fries Production Line is used to make frozen french fries in the labor-saving method. This Semi-Automatic Frozen French Fries Machine is designed with Auto Discharging Frying and Auto Discharge Blanching Machine which do not need the worker to take out french fries containers and take it to the next machine.  Semi-Automatic Frozen French Fries Machine can be used for 50kg/h, 100kg/h and 150kg/h capacity line (because automatic discharge French Fries frying machine and potato blanching machine have 1000mm diameter size, 1200mm diameter size and 1500mm diameter size).

Specification of Semi-Automatic Frozen Fries Production Line

Item Name Description Qty.
1 Brush Type Potato Washing Peeling Machine Power:1.1KW 1 unit
Size:1200*850*800mm
Weight: 200kg
Capacity:400kg/h
2 Potato Sticks Cutting Machine Power:1.1KW 1 unit
Size:950*800*950mm
Weight:110kg
3 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
4 Automatic Discharge Potato Blanching Machine Power:42KW 1 unit
Voltage:380v/50Hz
Size:2200*1000*2400mm
5 Continuous Potato Water Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
6 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
7 Automatic Discharge Potato French Fries Frying Machine Power:61kw 1 unit
Voltage:380v-3
Size:2200*1000*2400mm
Weight: 200kg
8 Continuous French Fries De-Oil Machine Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
9 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
10 French Fries Instant Freezer Power:28kw 1 unit
Voltage:380v/50Hz
Size:2300*2*2300mm

1.2.4 Full Automatic Frozen French Fries Production Line

Full-Automatic-Frozen-French-Fries-Production-Line-Manufacture-and-SupplierFull Automatic Frozen French Fries Production Line is used to produce frozen french fries that are used to sell to the restaurant, hotel and supermarket. This is one full automatic plant that does not the worker to operate the machine during working.  it only requires the worker to put raw potato at the start and get the final frozen french fries in the end.  Full Automatic Frozen French Fries include potato stick impurity removing machine which can remove small particle potato stick and impurity, which make sure we can get high quality frozen french fries.





Specification of Full Automatic Frozen French Fries Production Line

Item Name Description Qty.
1 Potato Belt Elevator Power:0.55kw/380v/50Hz 1 unit
Weight:180kg
Size:2400*700*1600mm
2 Screw Type Potato Washing Peeling Machine Power:4.37kw/380v/50Hz 1 unit
Weight:630kg
Size:3400*900*1400
3 Potato Selecting Conveyor Power:0.75kw/380v/50Hz 1 unit
Weight:280kg
Size:3500*700*900mm
4 French Fries Cutting Machine Power:1.1kw/380v/50Hz 1 unit
Weight:120kg
600-800kg/h
5 Elevator with Water Tank Power:0.75kw/380v/50hz 1 unit
Weight:330kg
Size:2200*800*1600mm
6 Potato Stick Impurity Removing Machine Power:2.2kw/380v/50hz 1 unit
Weight:500kg
Size:2000*1100*1400
7 Air Bubble Potato Stick Washing Machine Power:6.6kw/380v/50Hz 1 unit
Weight:800kg
Size:3500*1200*1300mm
8 Potato Hot Water Blanching Machine Power:120kw/380v/50Hz 1 unit
Weight:1400kg
Size:4500*1200*1300mm
9 Vibrate French Fries Water Removing Machine Power:0.5kw/380v/50Hz 1 unit
Weight:230kg
Size:1800*1000*1300mm
10 Air Blow French Fries Water Removing Machine Power:7.1kw/380v/50Hz 1 unit
Weight:700kg
Size:4000*1000*1600mm
11 Potato Elevator Power:0.55kw/380v/50hz 1 unit
Weight:180kg
Size:1500*800*1600mm
12 Electric Heating French Fries Frying Machine Power:120kw/380v/50Hz 1 unit
Weight:1500kg
Size:4000*1100*2200mm
13 French Fries Vibrate Oil Removing Machine Power:0.5kw/380v/50Hz 1 unit
Weight:230kg
Size:1800*1000*1300mm
14 Air Blow French Fries Oil Removing Machine Power:7.1kw/380v/50Hz 1 unit
Weight:700kg
Size:3500*1000*1600mm
15 French Fries Elevator Power:0.55kw/380v/50hz 1 unit
Weight:180kg
Size:1500*800*1600mm
16 French Fries Instant Freezer Power:80kw/380/50hz 1 unit
Weight: 4000kg
Size:9000*3300*3000
17 Frozen French Fries Packing Plant Power:6kw/380v/50hz 1 unit
Weight:1200kg
Size:3000*3000*2600

1.3 Potato Chips Processing Plant

Potato-Chips-in-AmericaAccording to different capacity and budget requirements. Romiter provides the potato chips plant as follows. For 1000kg Fresh Potato, we can get 300kg potato chips. In order to get potato chips, we need washing and peeling the potato, cutting the potato in round chips, blanching potato chips, frying potato chips, remove the oil after potato chips frying, potato chips seasoning for good flavor and pack it for selling.

1.3.1 Difference Between Potato Chips and French Fries

  1. Potato Chips fryer requires the potato chips can touch the air after drying and not burned, so we need to use a special design fryer which makes it allow fried potato chips to float on the oil. T
  2. The Fried Potato chips is very fragile and light. We need to use a special air blow oil removing machine to protect the potato chips and remove oil.
  3. In order to get high-quality potato chips, we need special design potato chips cutting machine which can get thin and same thickness potato chips. This is the most important step to get high-quality potato chips. If the thickness is big, after frying, the potato chips are not crisp. If the thickness is not uniform,  During frying, when some thin position on the potato chips already frying well. some other potato chips thicker positions may still need fry. When some potato chips thicker position frying well, some other potato chips thin position already burned.

1.3.2 Manual Potato Chips Production Line

Semi-Automatic-French-Fries-Production-LineManual Potato Chips Production Line is used to make potato chips in manual methods. For this potato chips, each machine requires one worker to operate.  take material from one machine to another machine for processing. Manual Potato Chips Production line is suitable for small potato chips business or restaurant use. Manual Potato Chips Machine can be used for 10kg/h, 20kg/h, 35kg/h and 50kg/h capacity line (because manual type potato chips frying machine and potato blanching machine has 1 container frying, 2 container frying, 3 container frying and 4 container frying design).

Specification of Small Manual Potato Chips Machine

Item Name Description Qty.
1 Brush Type Potato Washing Peeling Machine Power:1.1KW 1 unit
Size:1200*850*800mm
Weight: 200kg
Capacity:400kg/h
2 Potato Chips Cutting Machine Power:0.75KW 1 unit
Size:950*800*950mm
Weight:110kg
4 Two Container Batch Type Potato Blanching Machine Power: 24KW 1 unit
Voltage:380v/50Hz
Size:1200*700*950mm
5 Batch Type Centrifugal Water Potato Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
6 Two Container Batch Type Potato French Fries Frying Machine Power: 24kw 1 unit
Voltage:380v-3
Size: 1200*700*950mm
Weight: 120kg
7 Batch Type Centrifugal De-Oiling Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
8 Potato Chips Seasoning Machine Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*650*1500mm

1.3.3 Semi-Automatic Potato Chips Production Line

Semi-Automatic Potato Chips Production Line is used to make potato chips in the labor-saving method. This Semi-Automatic Potato Chips Machine is designed with Auto Discharging Frying and Auto Discharge Blanching Machine which do not need the worker to take out potato chips containers and take it to the next machine.  Semi-Automatic Potato Chips Machine can be used for 30kg/h, 70kg/h and 100kg/h capacity line (because automatic discharge potato chips frying machine and potato blanching machine have 1000mm diameter size, 1200mm diameter size and 1500mm diameter size).

Specification of Semi-Automatic Potato Chips Production Line

Item Name Description Qty.
1 Brush Type Potato Washing Peeling Machine Power:1.1KW 1 unit
Size:1200*850*800mm
Weight: 200kg
Capacity:400kg/h
2 Potato Chips Cutting Machine Power:1.1KW 1 unit
Size:950*800*950mm
Weight:110kg
3 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
4 Automatic Discharge Potato Chips Blanching Machine Power:42KW 1 unit
Voltage:380v/50Hz
Size:2200*1000*2400mm
5 Continuous Potato Water Dehydrator Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
6 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
7 Automatic Discharge Potato French Fries Frying Machine Power:61kw 1 unit
Voltage:380v-3
Size:2200*1000*2400mm
Weight: 200kg
8 Continuous French Fries De-Oil Machine Power:0.5KW 1 unit
Voltage:380v/50Hz
Size:1800*1000*900mm
9 Potato Elevator Power:0.75kw 1 unit
Voltage:380v/50Hz
Size:1500*800*2200mm
10 Potato Chips Seasoning Machine Power:0.75kw 1 unit
Weight: 250kg
Size: 1500*650*1500

1.3.4 Full Automatic Potato Chips Production Line

full-auotatic-french-fries-production-line-installtion-layoutFull Automatic Potoat Chips Production Line is used to produce potato chips that are used to sell on the market This is one full automatic plant that does not the worker to operate the machine during working.  it only requires the worker to put raw potato at the start and get the final potato chips in the end.  Full Automatic Potato Chips Machine includes potato chip impurity removing machine which can remove small particle potato and impurity, which make sure we can get high-quality potato chips.

Specification of Full Automatic Potato Chips Production Line

Item Name Description Qty.
1 Potato Belt Elevator Power:0.55kw/380v/50Hz 1 unit
Weight:180kg
Size:2400*700*1600mm
2 Screw Type Potato Washing Peeling Machine Power:4.37kw/380v/50Hz 1 unit
Weight:630kg
Size:3400*900*1400
3 Potato Selecting Conveyor Power:0.75kw/380v/50Hz 1 unit
Weight:280kg
Size:3500*700*900mm
4 Potato Chips Cutting Machine Power:1.1kw/380v/50Hz 1 unit
Weight:120kg
600-800kg/h
5 Elevator with Water Tank Power:0.75kw/380v/50hz 1 unit
Weight:330kg
Size:2200*800*1600mm
6 Potato Chips Impurity Removing Machine Power:2.2kw/380v/50hz 1 unit
Weight:500kg
Size:2000*1100*1400
7 Air Bubble Potato Chips Washing Machine Power:6.6kw/380v/50Hz 1 unit
Weight:800kg
Size:3500*1200*1300mm
8 Potato Chips Hot Water Blanching Machine Power:120kw/380v/50Hz 1 unit
Weight:1400kg
Size:4500*1200*1300mm
9 Vibrate Potato Chips Water Removing Machine Power:0.5kw/380v/50Hz 1 unit
Weight:230kg
Size:1800*1000*1300mm
10 Air Blow Potato Chips Water Removing Machine Power:7.1kw/380v/50Hz 1 unit
Weight:700kg
Size:4000*1000*1600mm
11 Potato Chips Elevator Power:0.55kw/380v/50hz 1 unit
Weight:180kg
Size:1500*800*1600mm
12 Electric Heating Potato Chips Frying Machine Power:120kw/380v/50Hz 1 unit
Weight:1500kg
Size:4000*1100*2200mm
13 Potato Chips Vibrate Oil Removing Machine Power:0.5kw/380v/50Hz 1 unit
Weight:230kg
Size:1800*1000*1300mm
14 Air Blow Potato Chips Oil Removing Machine Power:7.1kw/380v/50Hz 1 unit
Weight:700kg
Size:3500*1000*1600mm
15 Potato Chips Elevator Power:0.55kw/380v/50hz 1 unit
Weight:180kg
Size:1500*800*1600mm
16 Potato Chips Seasoning Machine Power:80kw/380/50hz 1 unit
Weight: 4000kg
Size:9000*3300*3000
17 Potato Chips Packing Plant Power:6kw/380v/50hz 1 unit
Weight:1200kg
Size:3000*3000*2600



1.4 Dehydrated Potato Flakes and Potato Flour

Dehydrated potato flakes are used in retail mashed potato products, as ingredients in snacks, and even as food aid. Potato flour, another dehydrated product, is used by the food industry to bind meat mixtures and thicken gravies and soups.

The potato starch provides higher viscosity than wheat and maize starches and delivers a more tasty product. It is used as a thickener for sauces and stews, and as a binding agent in cake mixes, dough, biscuits, and ice-cream.

In eastern Europe and Scandinavia, crushed potatoes are heated to convert their starch to fermentable sugars that are used in the distillation of alcoholic beverages, such as vodka and akvavit.

1.4.1 Dehydrated Potato Flakes

Dehydrated-Potato-FlakesDehydrated potato flakes are a highly portable, convenient source of nutrition. They are fairly easy to cook, don’t weigh much and keep for a long time without refrigeration. Also, you know what’s in them when you make them from scratch and they taste better.

  • Peel and boil potatoes until knife tender. To boil, cover them with cold water, then heat to boiling and reduce to a simmer. If you start in hot water, they’ll cook unevenly, with the outside falling apart before the inside is cooked. Do NOT add salt to the water.
  • Drain potatoes, reserving water from boiling potatoes.
  • Mash potatoes with reserved water to thin. Because fats and dairy products don’t dehydrate well and can spoil, do not add any milk or butter. Add salt, if desired.
  • Run the mashed potatoes through a blender or mixer until creamy and lump-free.
  • Cover dehydrator trays with non-stick sheets or parchment paper.
  • Pour a six-inch puddle of potatoes on the covered tray and spread thinly (about an eighth inch) with a spatula. 2½ pounds of mashed potatoes will take up five 15 x 15 trays.
  • Dehydrate at 135°F/55°C for about eight hours until potatoes form a brittle sheet.
  • Flip as follows to thoroughly dry the underside of the potato sheet: After about five hours of drying, place a dehydrator tray on top of the potato sheet and flip the two trays over so that the moister bottom side is facing up.
  • You’ll know they are finished when they “break” instead of “bend” and they are a whitish golden color. The dried sheet of potatoes will easily snap into Bark or crush down for tighter packing. Crush Potato Bark into small pieces (flakes) for tighter packing.
  • Pulse in a food processor to create flakes.
  • Store potato flakes the same as you would any powder for 6-12 months.

1.4.2 Baked Potato Chips

baked-potato-chipsBaked Potato Chips are different from frying potato chips, Here is step about how to make baked potato chips

Step 1: Preheat oven to 400 degrees. Lightly coat 2 rimmed baking sheets with cooking spray; set aside. Put potatoes, oil, 1 tablespoon salt, and the cayenne in a large bowl; season with pepper. Toss to combine.

Step 2: Arrange potato slices on prepared baking sheets, spacing them 1/4 inch apart. Bake, rotating sheets halfway through until potatoes are crisp and golden brown, about 30 minutes. Spread out potatoes on parchment paper; let dry 5 minutes. Sprinkle with salt, if desired.

1.4.3 Potato Starch

Potato-Starch-Production-LinePotato starch and potato starch derivatives are used in many recipes, for example in noodles, wine gums, cocktail nuts, potato chips, hot dog sausages, bakery cream and instant soups and sauces, in gluten-free recipes in kosher foods for Passover and in Asian cuisine. In pastry, e. G. Sponge cake, it is used to keep the cake moist and give a soft texture. It is also occasionally used in the preparation of pre-packed grated cheese, to reduce sweating and binding.

Potato starch is used in technical applications as wallpaper adhesive, for textile finishing and textile sizing, in paper coating and sizing and as an adhesive in paper sacks and gummed tape.

Processing Flow of Potato Starch Production Line

(1) Raw material receiving and washing during the potato starch processing machines:
The potato is carried beside the storage pool after weighing. Firstly, it goes through the vibration sieve for removing the stones and sand. Then the pre-cleaned potato falls on the belt conveyer and enters into the storage pool, and the rubbish will be carried away by the truck.
(2) De-stone and washing unit of potato starch processing machines:
Potato is transferred into the screw destone machine to be cleaned by water flow. The small sand and stone go through the rotary screen then meet with bigger size stone which was stopped and sent back to the entrance of the de-stone machine. Most of the sand and stone are removed out of the de-stone machine.
Then the potato is sent by bulk elevator into temporary storage in which it can stay 2 hours.
(3) The crushing unit of potato starch processing machines:
The Crushing unit is the most important step for extracting potato starch. The feeding screw combined at bottom of the storage tank pumped the clean potato into the milling machine. The highly-efficient milling machine will release the starch in the potato at most.
(4) Centrifugal extracting unit of potato starch processing machines:
The mixture is transferred to the 3 stage centrifugal sieves, each sieve works with a fiber pump and a defoam pump. The mixture enters into each sieve to separate residue and starch. After 3 stages of continuous washing and separation, the filtrate is sent to the concentration and refining unit, and the residue is sent to the residue dewatering unit.
(5) Potato residue dewatering unit of potato starch processing machines:
The potato residue will be pumped to the centrifugal sieve for dewatering, the centrifugal sieve works like the extraction sieve. Then the screw conveyor discharges the residue out of the process, and the water will go back to the process water system.
(6) Concentration and refining unit of potato starch processing machines
The starch milk from centrifugal sieve goes into the 16 stages of refining hydro-cyclone, and fresh water comes into the cyclone from the end of the system. Firstly, starch milk is pumped into 3 stages of the concentration unit to remove the water, then the condensed starch milk enters the next 13 stages of the washing unit, and the overflow enters into another 2 stages of the recycle unit to recycle starch. Most of the effluent with fiber is discharged out of the process, and a little part goes back to the process water system. Finally, the condensed starch slurry is pumped into the starch slurry storage tank.
(7) Vacuum dewatering unit of potato starch processing machines:
The starch slurry is pumped into the inlet tank of the vacuum dewatering machine. Then the vacuum rotary drum will adsorb the starch on the drum surface and the filtrate is transferred out of the system by filtrate pump. The filter cake on the drum will be peeled off by a peeler and then transferred to the air dryer by screw conveyor.
(8) Air drying unit of potato starch processing machines:
After the dewatering process, the air dryer will dry the starch to the required moisture of the commercial starch.
The packaging machine will be according to the customers’ special requirements.

2. NON-FOOD USES: GLUE, ANIMAL FEED, AND FUEL-GRADE ETHANOL

Potato starch is widely used by the pharmaceutical, textile, wood, and paper industries as an adhesive, binder, texture agent, and filler, and by oil drilling firms to wash boreholes. Potato starch is a 100% biodegradable substitute for polystyrene and other plastics and used, for example, in disposable plates, dishes, and knives.

Potato peel and other “zero value” wastes from potato processing are rich in starch that can be liquefied and fermented to produce fuel-grade ethanol. A study in Canada’s potato-growing province of New Brunswick estimated that 44,000 tons of processing waste could produce 4-5 million liters of ethanol.

In the Russian Federation and other east European countries, as much as half of the potato harvest is used as farm animal feed. Cattle can be fed up to 20 kg of raw potatoes a day, while pigs fatten quickly on a daily diet of 6 kg of boiled potatoes. Chopped up and added to silage, the tubers cook in the heat of fermentation.



Company Profile

Adhering to the principle of managing scientifically and honesty and credit, our factory has passed ISO9001-2000 quality system certification. Now, Our factory can provide potato dry cleaning machineautomatic potato washing peeling machinepotato peeling machinefrench fries sticks cutting machinepotato graderpotato cleaning and sorting machine,  potato chips production linefrench fries production linefrozen french fries production linewave shape french fries production line, potato starch production line, potato mesh bag packing machinepotato dosing packing machine.

Our potato processing products have passed with CE, ISO and SGS Certificates and has been widely sold all over the world.

Prev:
Next:
X

Online Chat

Potato Processing Machine Email Potato Processing Machine Skype Potato Processing Machine Whatsapp Potato Processing Machine Telegram Potato Processing Machine Wechat Potato Processing Machine Wechat
error: Alert: Content is protected !!
1 Shares
Tweet
Share
Share
Pin
Share
