Semi-Automatic French Fries Production Line with Auto Discharging Frying and Blanching Machine is used to make french fries in semi-automatic method. it adopt automatic discharging type potato blanching machine and frying machine, which can reduce labor cost and increase this line capacity.

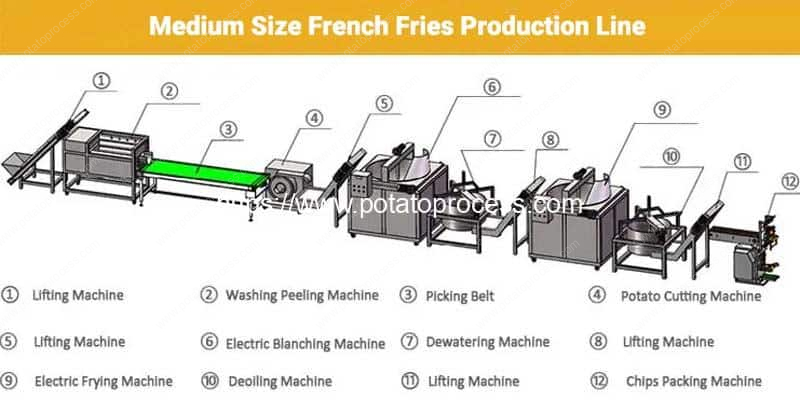

System Drawing of French Fries Production Line with Auto Discharge Fryer
Specification of Semi-Automatic French Fries Production Line
| Item | Name | Description | Qty. | |
| 1 | Brush Type Washing Peeling Machine | Power:1.1KW | 1 | unit |
| Dimensions:1200*850*800mm | ||||
| Weight: 200kg | ||||
| Capacity:400kg/h | ||||
| 2 | Potato Sticks Cutting Machine | Power:1.1KW | 1 | unit |
| Dimensions:950*800*950mm | ||||
| Weight:110kg | ||||
| 3 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 4 | Automatic Discharge Blanching Machine | Power:42KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:2200*1000*2400mm | ||||
| 5 | Continuous Water Dehydrator | Power:0.5KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:1800*1000*900mm | ||||
| 6 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 7 | Automatic Discharge Frying Machine | Power:61kw | 1 | unit |
| Voltage:380v-3 | ||||
| Dimension:2200*1000*2400mm | ||||
| Weight: 200kg | ||||
| 8 | Continuous De-Oil Machine | Power:0.5KW | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimensions:1800*1000*900mm | ||||
| 9 | Elevator | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*800*2200mm | ||||
| 10 | Seasoning Machine | Power:0.75kw | 1 | unit |
| Voltage:380v/50Hz | ||||
| Dimension:1500*650*1500mm | ||||
| 11 | Packing Machine | Power:2.2kw | 1 | unit |
| Voltage:380v/220v/50Hz | ||||
| Dimensions:970*680*1950mm | ||||
| Film width:max.320mm | ||||
| Film diameter:max.300mm | ||||
| Bag length:60-200mm | ||||
| Bag width:50-150mm | ||||
| Weight: 300kg | ||||
Working Video of Semi-Automatic French Fries Production Line
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and a manufacturer of potato processing machines. Romiter Machinery wins a wide reputation high quality machine with high efficiency, excellent reliability, easy maintenance, long lifespan and with an excellent technical support team.
Now, Our factory can provide potato dry cleaning machine, potato size grading sorting machine, potato washing peeling machine, potato sticks cutting machine, potato knife peeling machine, potato chip cutting machine, potato selection conveyor, potato chips blanching machine, potato french fries frying machine, french fries de-oiling machine, potato air blow water removing machine, potato chip seasoning machine, potato chips production line, frozen french fries production line, frozen french fries instant freezer, potato starch production line, potato mesh bag packing machine, potato dosing packing machine.
Romiter potato processing machine has passed with CE, ISO and SGS Certificates and has been widely sold all over the world.
