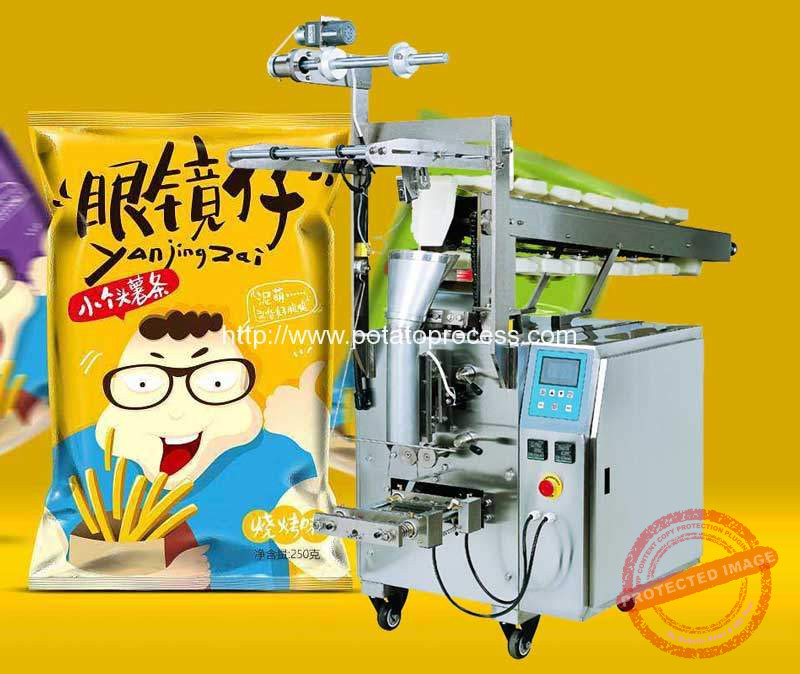

Semi-Automatic Potato Chips Chain Hopper Feeding Packing Machine is used to make packages from the film. It needs the worker to put the suitable weight or quantity of potato chips or french fries into the feeding hopper, then following feeding and packing will be complete by the machine. Trailer-type potato chips and french fries packaging machine is suitable for pharmaceutical, food, cosmetic, pesticide, metal, plastic products and special products in the industry, such as herbal medicine, Chinese Herbal Medicine, cool oil, business cards, card, plastic cutlery, metal screws, and irregularly shaped materials, packaging materials.
Table of Contents
Advantage Feature of Chain Hopper Feeding Type French Fries Packing Machine
- Automatic bag-making, filling, sealing, cutting and coding number.
- It has a color control system that can get the complete trademark design (photoelectricity control system).
- The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts
- Intelligent temperature control by temperature controller to make heat balance better.use bilingual display screen control system and stainless steel cabinet
- Fine packaging performance, low noise, clear sealing texture and strong sealing performance
- With safe plastic box on rotating blade to avoid hurting operator’s hands
- Need to change new temperature controller, blade& pressing mode only after 3 years continuous operation,2 shifts a day and other parts is still good and safe freely)
- With printer (to be able to code the date and batch number) and rotating blade(be able to adjust the length of bag and shape of bag notch edge packing.
Specification of Small Chain Hopper Feeding Potato Chips Packing Machine
| Model | RM-VP320(Chain) | RM-VP350(Chain) | RM-VP480(Chain) |
| Packing Speed | 40-60Bags/min | 30-60Bags/min | 20-40Bags/min |
| Total Power | 3.0KW/220V | 2.5KW/220V | 2.5KW/220V |
| Measure Range | 20-100g | 5-100g | 5-1000g |
| Gross Weight | 400Kg | 400Kg | 500Kg |
| Bag Size | L: 50-150mm W: 40-150mm | L: 30-180mm W: 30-140mm | L: 30-300mm W: 30-210mm |
| Packing Film Thickness | 0.03-0.08mm | 0.05-0.1mm | 0.05-0.1mm |
| Rolling Paper Diameter | <=450 | <=450 | <=450 |
| Outsize | 750*980*1680mm | 820*980*1680mm | 820x1100x1980mm |
Working Video of Semi-Automatic Hopper Feeding Potato Chips and French Fries Packing Machine
Company Profile
Adhering to the principle of managing scientifically and honesty and credit,our factory has passed ISO9001-2000 quality system certification. Now, Our factory can provide potato dry cleaning machine, potato brush cleaning and sorting line, potato washing machine, potato peeling machine, potato sticks cutting machine, potato grader, potato chips production line, french fries packing machine, potato starch production line, potato mesh bag packing machine, potato dosing packing machine.
Our potato processing products have passed with CE,ISO and SGS Certificates and has been widely sold all over the world.
