Картофельный упаковочная машина

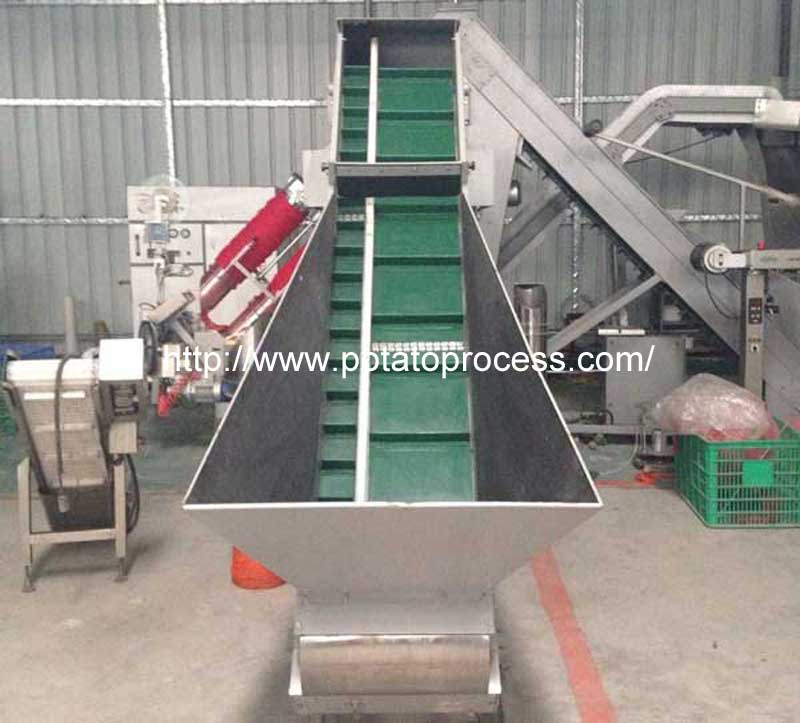

Автоматический Картофельный Взвешивание Упаковочная машина

Automatic Potato Weighting Bag Packing Machine are designed for dosing of agricultural products (potatoes, onion, garlic, apply etc) into knitted sleeves, box pallets, bags or cas ...
Product Details


Automatic Potato Weighting Bag Packing Machine are designed for dosing of agricultural products (potatoes, onion, garlic, apply etc) into knitted sleeves, box pallets, bags or cases. The material shall be cleaned and sorted out for the operation to be smooth and trouble free. The minimum size of fruits is 20mm.the maximum size of fruits is 120mm.the average effective volume of the hopper in which a dose is weighed is 70 dm3 (this corresponds to 50 kg of potatoes of size of ca.70 to 90 mm). The weight of a dose can be adjusted by 0.01kg in the range of 5 to 50kg.

The device can work as a last stage of an after-harvest assorting line, or it can work alone. One person is sufficient for its operation.


Working Process of Automatic Potato Weighting Bag Packing Machine

The pressure sensor sends the signal to the hopper to indicate the product weight. The electrical control unit receives data from pressure sensor, then it will automatically calculate and output the information, so as to control the weighing process. The belt operates based on the target weight, coarse filling, medium filling and fine filling.

The sequence is : coarse fillingmedium fillingfine filling, so that the target weight is reached. When in the coarse filling, the wider belt is in a high speed, while in medium filling, it will in a medium speed. Then coming the target weight, the wider belt will stop. On the process of coarse filling and medium filling, the narrow belt keeps running slowly, while on fine filling, it will fill the products one by one to stop until reaching the target weight.

Feature of Automatic Potato Weighting Bag Packing Machine

  1. Two conveyor belt is installed on the machine frame. Each conveyor belt is driven separately, and the data can be adjusted individually. The 0.3m belt is controlled by double operation speed electric reducer, so that the belt can convey the products into the hopper. The 0.1m belt is by low speed electric reducer. After the 0.3M belt stopped, it will get accurate measurement until the target weight.
  2. The hopper is installed in the bottom frame by a pressure sensor. There is a discharging door in the hopper, which is controlled by two cylinders for discharging and closure.

Specification of Automatic Potato Weighting Bag Packing Machine

Model RM-WD50
Machine size 2920*790*2170mm
Net weight 330KG
Working condition ambient temperatures, not be affected by air conditions
Running temperature +5℃-40℃
Rated voltage 3P 380VAC ±10% (customized available)
Control voltage DC24V
Power 2.2kw
Air pressure 0.8MPa
Air Volume 0.3m3
Weighing range 5-50KG
Weighing adjusting 0.01kg
Dosing accuracy More or less than the weight of one product
Weight display Numbers, four digits
Weight display digit 0.01kg
Quantity display Numbers, 0-9999
Control module One bag modus or pallet modus
Noise grade 77dB
personnel one
Speed 5KG (based on the actual weighing products) reaches 280pcs/h
50KG (based on the actual weighing products) reaches 110pcs/h

General Drawing of Automatic Potato Weighting Bag Packing Machine

Automatic-Potato-Weighting-Bag-Packing-Machine-General-Drawing1.PVC conveyor system 2. Drives of conveyor 3. Chassis  4. Hopper with tensometer 5. Exchangeable sack fillers

6. electronic control unit  7. Electronic power box   8. Air inlet Φ8mm(in the back of electric power box)

Working Video of Potato Weighting Mesh Bag Packing Machine

Company Profile

Adhering to the principle of managing scientifically and honesty and credit,our factory has passed ISO9001-2000 quality system certification. Now, Our factory can provide potato dry cleaning machine, potato washing machine, potato peeling machine, potato sticks cutting machine, potato grader, potato chips production line, potato starch production line, potato mesh bag packing machine, potato dosing packing machine.

Our potato processing products have passed with CE,ISO and SGS Certificates and has been widely sold all over the world.
